Agile and efficient aquatic waste collector for cleaner water bodies.

SELF-DRIVING SURFACE
CLEANING SHIP

  • bj2-1
  • bj2-1
  • bj2-1

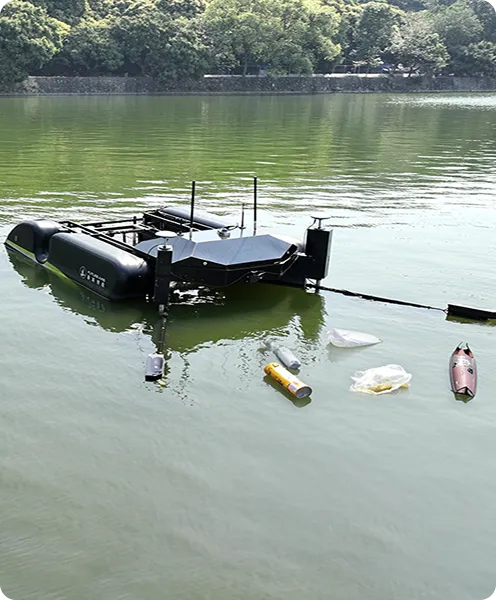

Self-driving surface cleaning ship

Pangao Leader' has launched a high-efficiency foldable unmanned cleaning boat for the water sanitation industry. It can collect various stubborn garbage on the water surface, such as fallen leaves, catkins, floating mud, blue algae, duckweed, oil stains, etc. It is mainly suitable for daily cleaning of large water areas, such as urban rivers, reservoirs, lakes, ports and docks, etc. Compared with traditional manual cleaning, it saves 12-14 people and reduces cleaning costs by 75%.

For more information, or to discuss procurement options, please fill out the SALES contact form and specify your interests via this link:

CONTACT US
  • Latest Generation of Flexible Extension Arms

    Latest Generation of Flexible Extension Arms

    The latest generation of flexible extension arms in the industry can achieve zero-distance edge cleaning. Achieve zero dead corner cleaning of water areas, making the water area cleaner.

  • RTK high-precision Positioning

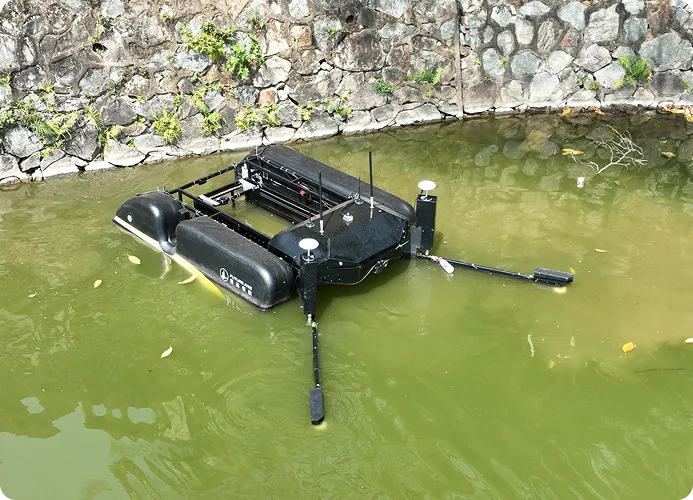

    RTK high-precision Positioning

    Based on RTK high-precision positioning, unmanned boats can achieve centimeter-level surface positioning and better cope with complex water scenes.

  • Intelligent Route Optimization

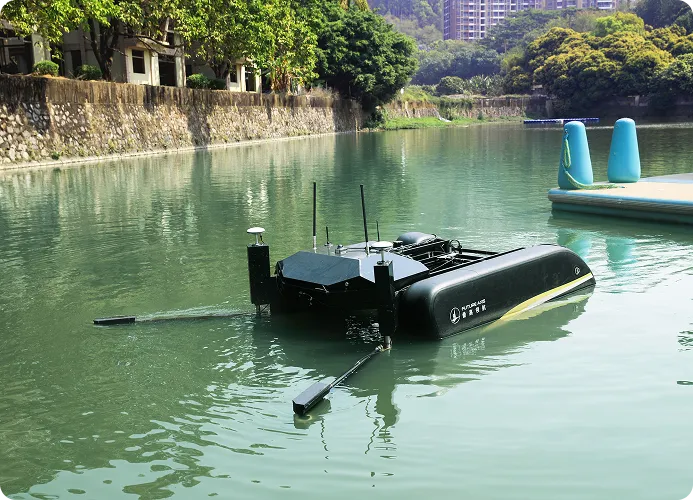

    Intelligent Route Optimization

    With the support of intelligent algorithms, unmanned boats can autonomously plan cleaning routes, making water cleaning operations efficient and safe.

  • Autonomous and Precise Obstacle Avoidance

    Autonomous and Precise Obstacle Avoidance

    Relying on the millimeter-wave radar and vision sensors, unmanned boats can accurately avoid obstacles and perform scene modeling of the operating waters.

Core technic

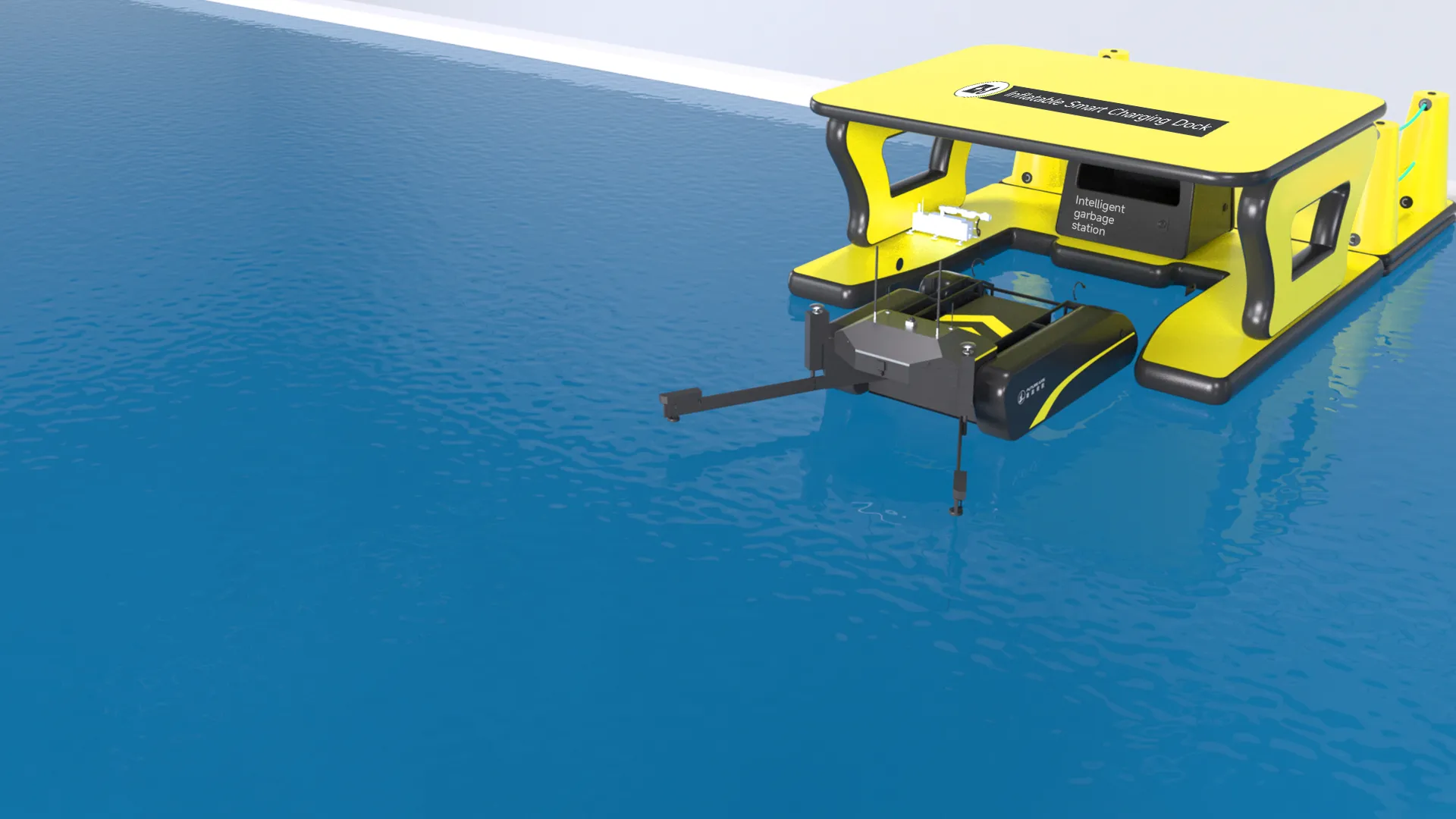

Original foldable Smart Charging Dock and Smart waste contriner

The original foldable intelligent charging dock can automatically charge the cleaning ship when the task is completed or the power is insufficient. By automatically lifting the garbage basket at the end of the ship, the garbage can be automatically transported to the garbage station, and the whole operation can be unmanned, greatly reducing the labor cost of water surface cleaning.

Original foldable smart charging dock and smart garbage disposal machine

The trash basket automatically rises to the shore and automatically raks up，When the last kilometer of water cleaning is about to be completed.

Original 6 - degrees - of - freedom Robotic Arm

The three links rotate with 6 degrees of freedom, and the collection width can be flexibly adjusted to a maximum of 15 meters. It can automatically adapt to different shorelines and clean all kinds of stubborn garbage along the edge.

L4 fully Automatic Operation

Equipped with Pangao Leader's self - developed surface autopilot driving domain controller, 4D millimeter - wave radar, lidar, and visual camera, it can realize autonomous perception, positioning, control, obstacle avoidance, charging, etc., effectively reducing safety risks and operating costs.

Original Omnidirectional Propulsion Device

360 - degree flexible movement, capable of quick U - turns and turns, greatly improving work efficiency.

Product parameter

Hull size

L*W*H(mm): 2200*1800*1000

Quality standard

Hull weight:180KG

Garbage Carrying Capacity:50KG

Maximum Water Level:0.3m

Charging

Charging time:4hours

Battery Life:6-8hours

Battery:1 set of 48V/100Ah high-capacity lithium batteries

Operation effect

Collection Width:0-4m

Maintenance of Water Area:150 acres

Dynamic velocity

Propeller:2*1KW electric propeller

Rated Operating Speed:0.6m/s

Maximum Speed:1.5m/s

Safety guarantee

Hull Material:High-strength aluminum alloy, composite drop stitch material

Safety Protection and Dustproof Design:IP65

Wind and Wave Resistance Level:Level 3 wind 1, meter wave

Genuine "Swiss Army Knife",
FA Unmanned Cleaning Vessel is designed for all

Click on the scene application to discover more

HARB OURS,
WATERWAYS & LAKES

AQUATIC TOURISM

RESEARCH INSTITUTES &
ENVIRONMENTAL AWARENESS
